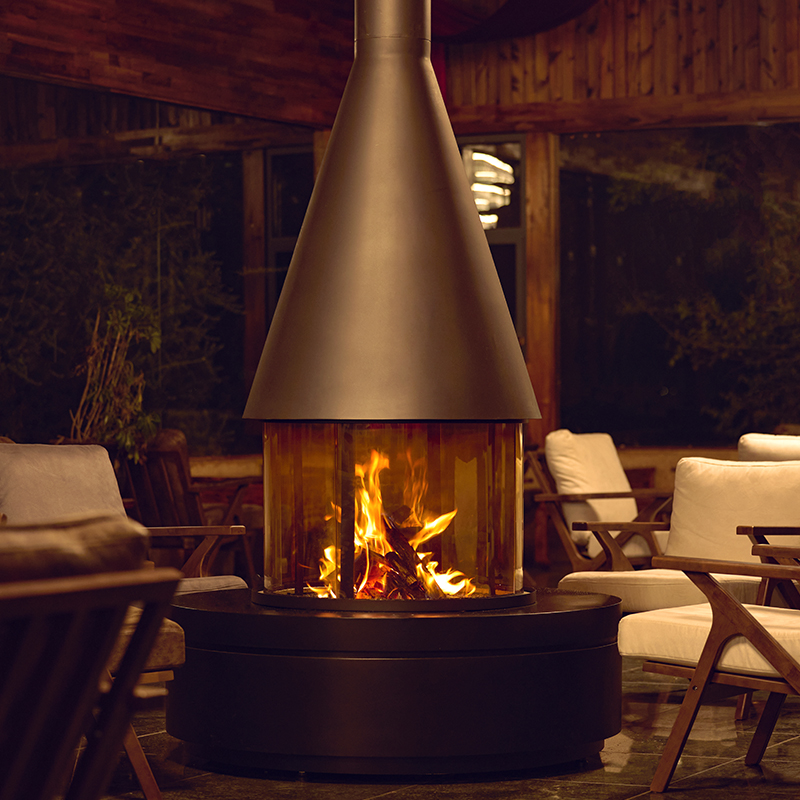

Brent 900mm Suspended Wood Burning Fireplace

Brent 900mm Suspended Wood Burning Fireplace

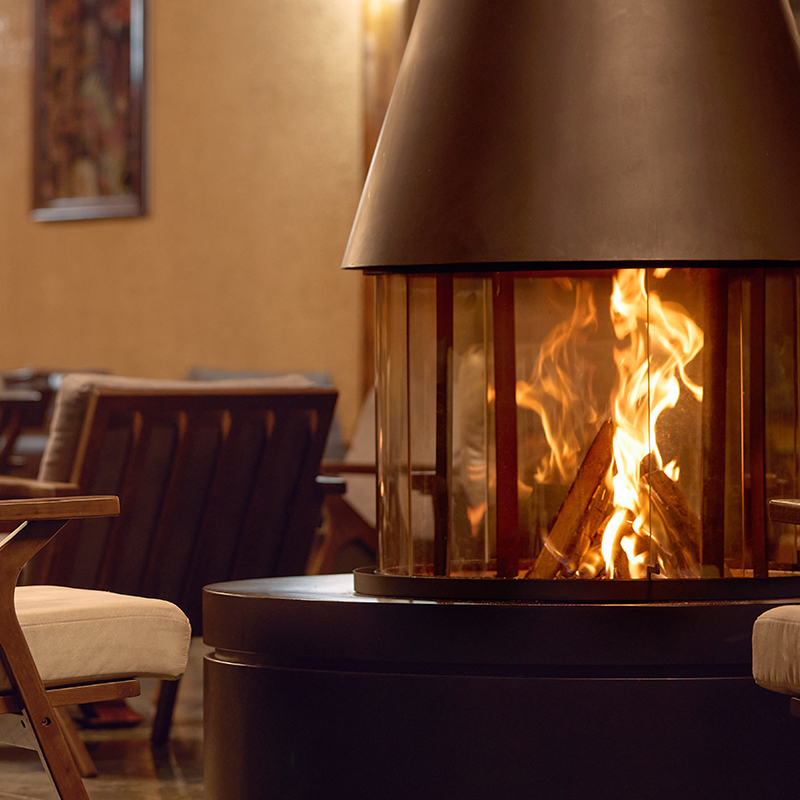

Highly engineered evolution of the suspended fireplace concept—this model introduces a dynamic panoramic glass system that transforms fire viewing from a fixed perspective into a continuously rotating spatial experience. It combines controlled combustion, architectural purity, and mechanical precision into a single sculptural object.

More styling options
Specifications & Drawings
Efficiency
Accessories
Optional Accessory

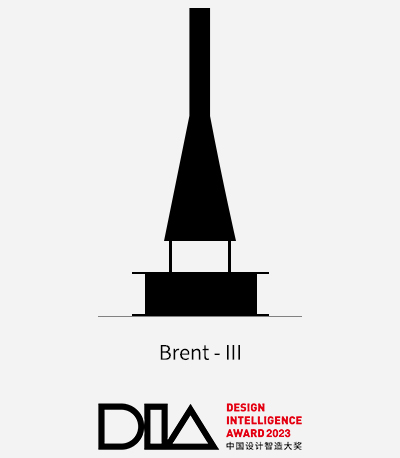

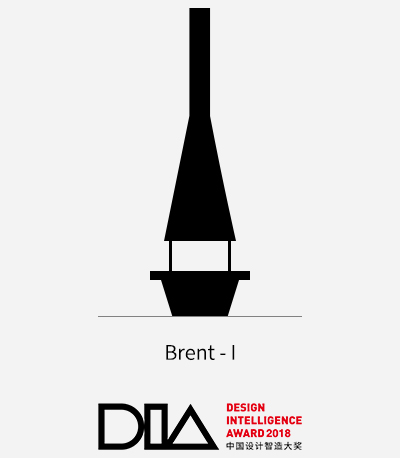

More styling options

More styling options

Beyond our standard collections, a wide range of design configurations is available to complementdifferent architectural styles. For unique project requirements, bespoke solutions can be developedto achieve a truly tailored fireplace experience.

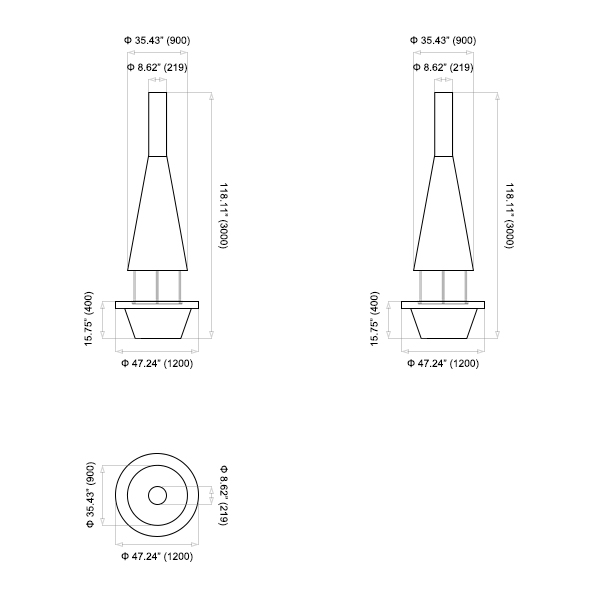

Specifications & Drawings

Firebox Material	5 mm high-carbon steel
Flue pipe material	3 mm high-carbon steel
Design features	Enclosed combustion
Surface treatment	High-temperature-resistant black coating system
Maximum equivalent flue length	50'
Maximum horizontal flue length	5'
Maximum number of 90-degree elbows allowed	2
Maximum number of 45-degree elbows allowed	3
Distance from combustible materials	As specified in the installation guide


Efficiency


Burner Configuration Compatible with this model	Wood	Bioethanol	Natural gas/LPG
Heat Output Generated heat capacity	38,000 BTU/h	25,000 BTU/h	65,000 BTU/h
Capacity Fuel storage volume	5kg	3.2L	Not applicable
Burning Duration Continuous combustion runtime	3 hours （5kg）	3-5 hours （3.2L）	Unlimited
Recommended Heating Area Applicable heating space	40-120m²	20-50m²	40-150m²
Minimum Room Size Required installation space for burner	60-120m²	30-50m²	60-150m²

Accessories

Charcoal Basin

The design of the charcoal basin enhances the efficiency of airflow for combustion and accentuates the natural expressiveness of the flames.
Charcoal Grate

The structure of the charcoal grate further optimizes airflow and combustion performance for the flames.
Damper

The damper system allows for precise regulation of airflow, thereby optimizing the stability and performance of the flame combustion.
Flange

A high-strength mounting flange ensures the stability and safety of the suspended structure during long-term use.
Main Flue Kit

The main flue kit establishes a stable exhaust channel system, ensuring the efficient and smooth discharge of combustion gases.
Wood Joist Protection Kit

This metal thermal insulation kit creates a safety barrier between the fireplace and adjacent wooden joists, effectively mitigating the risk of heat transfer and enhancing overall structural stability.
