Cast Iron 710mm Wood Burning Fireplace

This solid cast iron wood-burning stove stands on stable supporting legs, fitted with a large transparent viewing window to showcase vivid burning flames. It features adjustable air control for efficient combustion and long-lasting warmth. Ideal for cabins, countryside villas and retro-style indoor spaces as both a heater and decorative focal piece.

More styling options
Specifications & Drawings
Efficiency
Accessories
Optional Accessory

More styling options

Flexible fireplace installation solutions fit any interior design style.

The MS Wood-Burning Fireplace boasts versatile installation options to suit various interior layouts. Offered in room-divider, panoramic three-sided, see-through double-sided, minimalist single-sided, and L-shaped corner configurations, it preserves spatial visual continuity, maximizes flame visibility, and enables seamless integration into diverse spaces for optimal functionality and aesthetics.

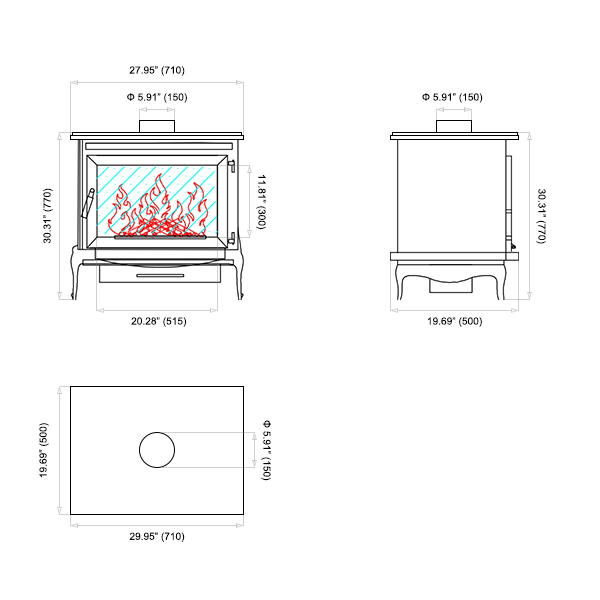

Specifications & Drawings

Fuel Type燃料类型	Seasoned wood熟木
Material Standards材料标准	Carbon Steel/Cast Iron碳钢/铸铁
Surface Treatment表面处理	Matte Powder Coating哑光粉末涂层
Air Intake System进气系统	Three-Stage Intake System三级进气系统
Heat Enhancement System	Structure of the Energy-Concentrating Panel
Pipe Diameter	φ150/φ200
Installation Methods	Freestanding/Built-in

Efficiency


Operation Mode Compatible Operation Types	Carbon Stee	Cast Iron
Heat Output The heat it generates	27,000 – 120,000 BTU 8 – 35 kW	17,000 – 60,000 BTU 5 – 18 kW
Heating Time Time until heat is felt	10 – 25 minutes	20 – 40 minutes
Capacity Fuel Capacity	3 – 8kg	2 – 6 kg
Burn Time Continuous Burn Time	4 – 10 hours	3 – 7 hours
Recommended Heating Area Size of the area to be heated	40 – 120 m²	28 – 80 m²

Accessories

Tertiary Air Supply System三级供风系统

an advanced combustion air system that introduces preheated air into the upper combustion zone to reburn flue gases and improve efficiency.一种先进的助燃空气系统，可将预热空气引入上部燃烧区，以实现烟气的再燃烧并提高效率。
Airwash空气洗涤

directs preheated air across the inner surface of the glass to prevent soot buildup and maintain clear flame visibility.将预热空气导向玻璃内表面，以防止烟灰堆积并保持火焰清晰可见。
Vermiculite Panels蛭石板

Designed specifically to enhance heat reflectivity, combustion stability, and furnace durability under continuous high-temperature operating conditions.专为在持续高温工况下提升热反射性能、燃烧稳定性及炉体耐久性而设计。
Ash tray灰盘

Used to collect and contain the ashes produced by combustion, facilitating the cleaning and maintenance of the firebox.用于收集并容纳燃烧产生的灰烬，便于炉膛的清洁与维护。
Flue System烟道系统

non-insulated steel flue system designed to channel combustion gases from the fireplace to the chimney system in indoor applications.用于在室内应用中将壁炉产生的燃烧废气引至烟囱系统的非绝缘钢制烟道系统。

Optional Accessory

Double Wall Insulated Flue Pipe双层保温烟道

consisting of inner stainless steel flue and outer insulated casing, designed to maintain optimal draft and reduce external surface temperature.由内层不锈钢烟道与外层保温外壳组成，旨在保持最佳排烟拉力并降低外表面温度。
Glass Upgrade System玻璃升级系统

The silk-screen printed glass enhances flame contrast while concealing internal structure and improving the overall architectural appearance.丝网印刷玻璃可增强火焰的对比度，同时隐藏内部结构，提升整体建筑外观效果。
Maintenance Tools维护工具

This set includes a gray shovel, a brush, a fire hook, and a cleaning brush, and is designed for efficient cleaning of the firebox and safe maintenance of the combustion process.本套装包含一把灰色铲子、一把刷子、一个火钩和一把清洁刷，专为高效清理炉膛并安全维护燃烧过程而设计。
Ceramic Fiber Insulation陶瓷纤维保温

For protective covering and insulation of fireplace surfaces.用于壁炉表面的防护覆盖与隔热。
