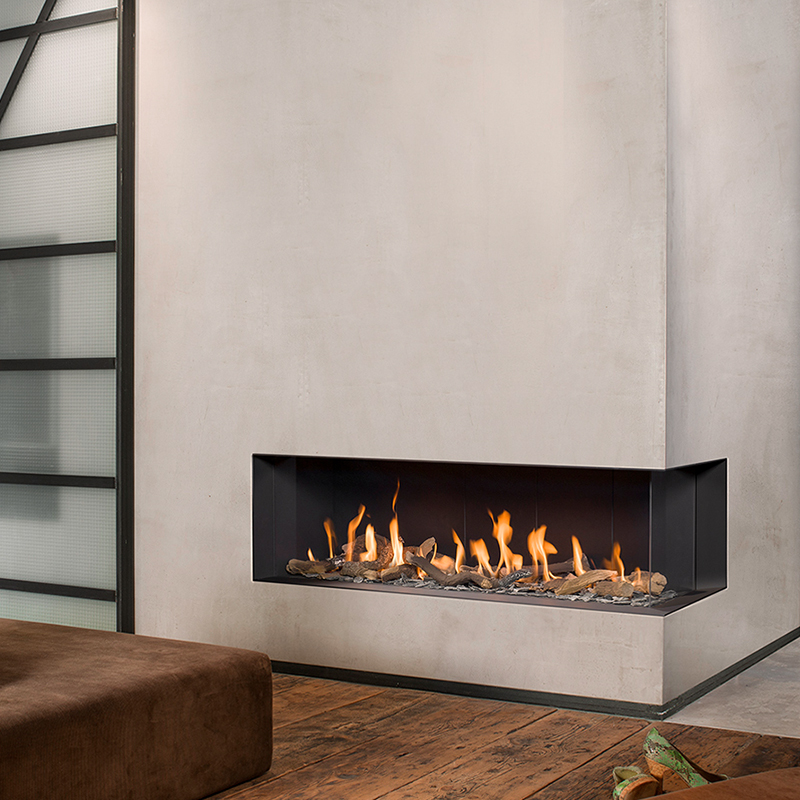

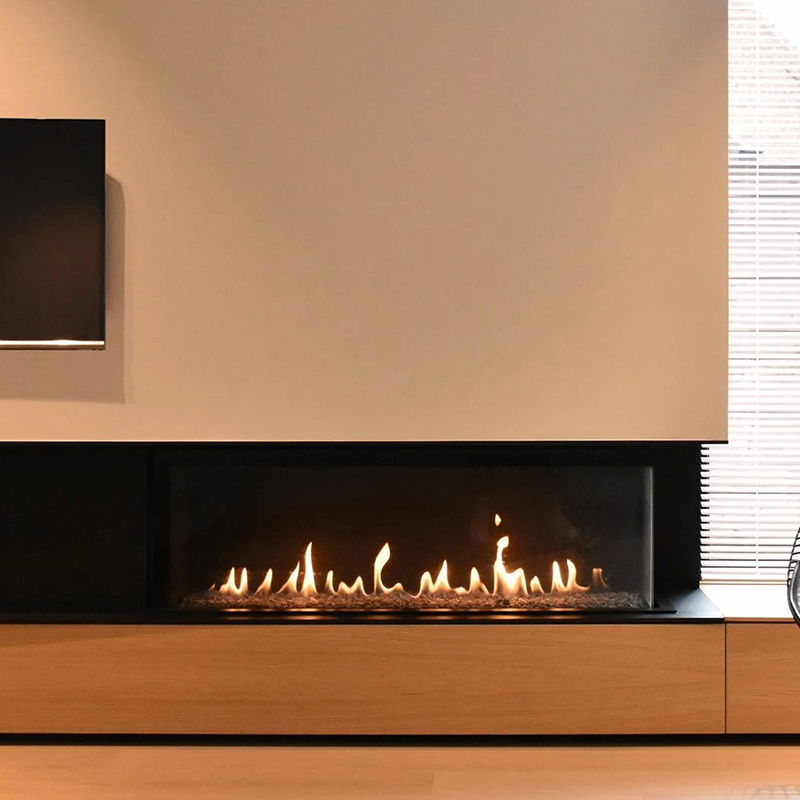

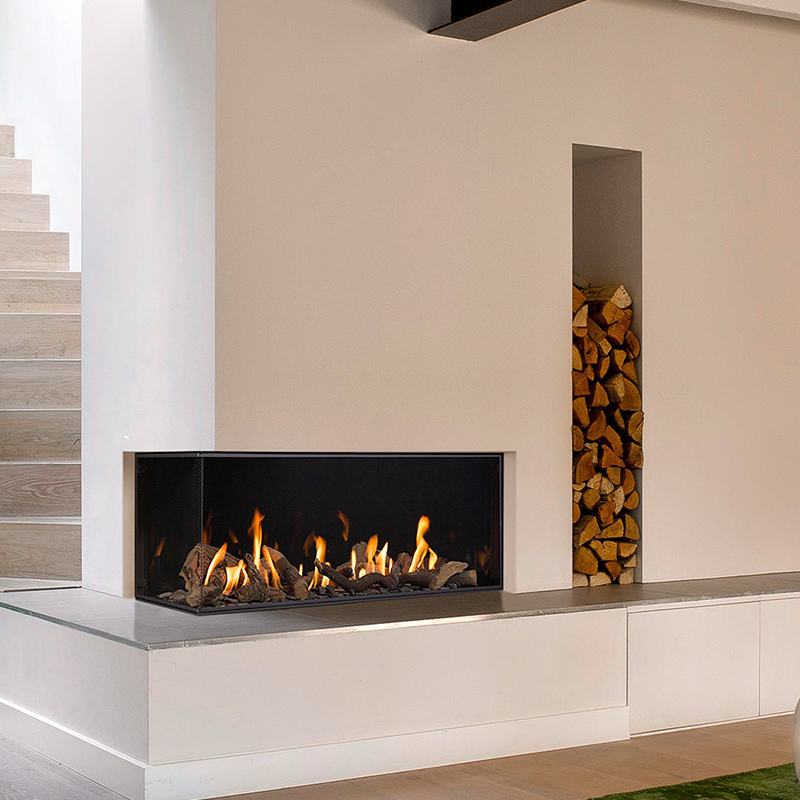

ULC 1016mm Corner Gas Fireplace
The most compact offset opening structure defines the flame’s unidirectional visual relationship, securely confining the combustion behavior to one side of the interface. ULC-1016 emphasizes the “logic of peripheral viewing,” where the flame is no longer located at the center of the space but becomes a low-interference light source at the edge of the structure.
- More styling options
- Specifications & Drawings
- Efficiency
- Accessories
- Optional Accessory
More styling options
Flexible fireplace installation solutions fit any interior design style.
The ULC Gas Fireplace series delivers flexible installation options for all interior designs. Available as room divider, panoramic three-sided, see-through double-sided, minimalist single-sided wall-mounted and L-shaped corner units, it maintains unobstructed sightlines, broadens flame visibility, integrates smoothly into any space and harmonizes functionality with aesthetics.

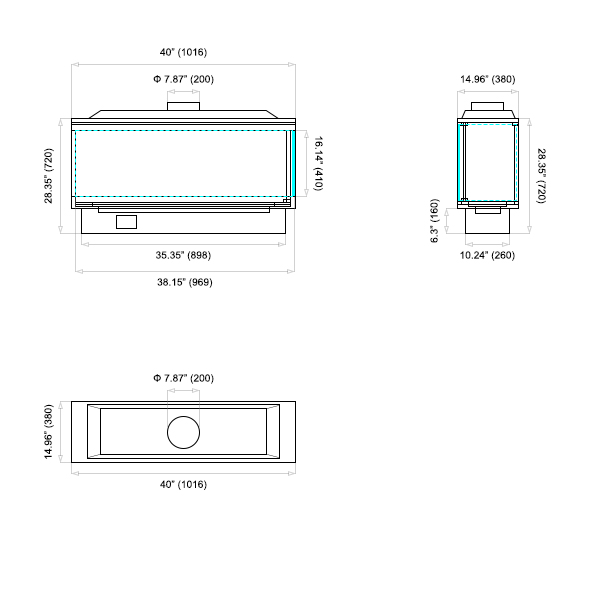

Specifications & Drawings
| Gas TypeCompatible Fuel Types | NG / LPG |
| Fireplace TypesIts product types | Direct Vent / B-Vent / Vent-Free |
| Control SystemIntelligent Operation | Remote Control / Touch Buttons |
| Flame Height Adjustment RangeThe maximum height the flame can reach | 1-5-step adjustment |
| Glass TypeSchott glass imported from Germany | Ceramic Glass |
| Power StandardsCompatible Plug Types | 110–120V / 220–240V |
| Additional Features | LED Ambient Lighting System |
Efficiency
 |
Gas Type Compatible Fuel Types | NG | LPG |
 |
Thermal Efficiency Its combustion efficiency | 85%-95% | 85%-98% |
 |
Gas Inlet Pressure Range Pipe Connection Standards | 17–25 mbar (EU) 5–10 in.w.c (US) | 25–37 mbar (EU) 10–14 in.w.c (US) |
 |
Heat Output Range (BTU / kW) The amount of heat it can release | 50,000 – 80,000 BTU 15 – 23 kW |
50,000 – 80,000 BTU 15 – 23 kW |
 |
Suitable Room Size Heating Area It Can Cover | 80 – 180 m² | 80 – 180 m² |
 |
Hourly gas consumption Amount of fuel required | 1.4 – 2.3 m³/h | 1.0 – 1.6 kg/h |
 |
Burn Time Continuous Burn Time | Unlimited | 10 kg of LPG ≈ 6–12 h |
Accessories
-

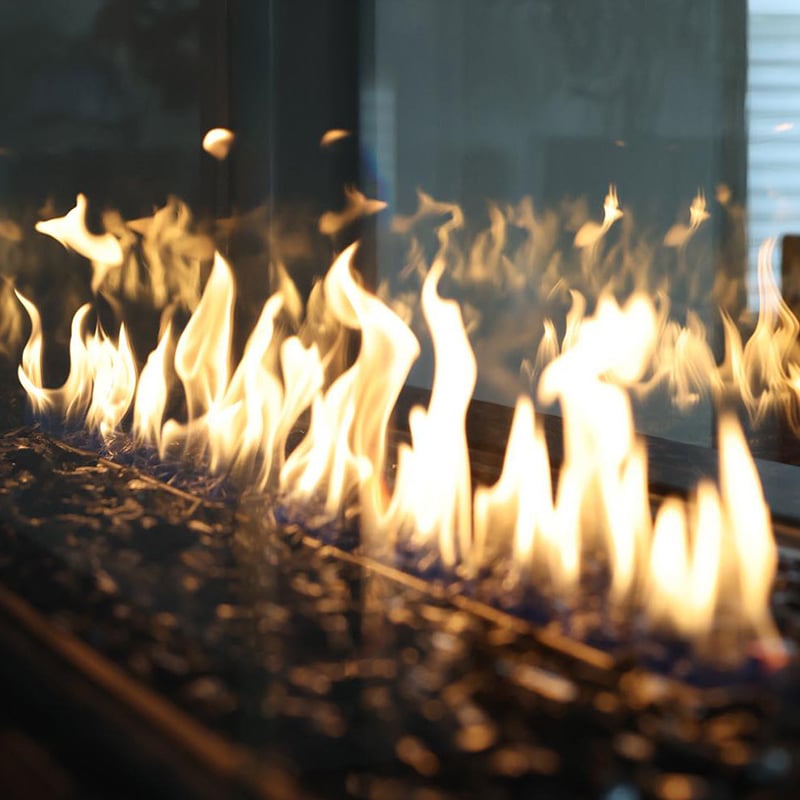

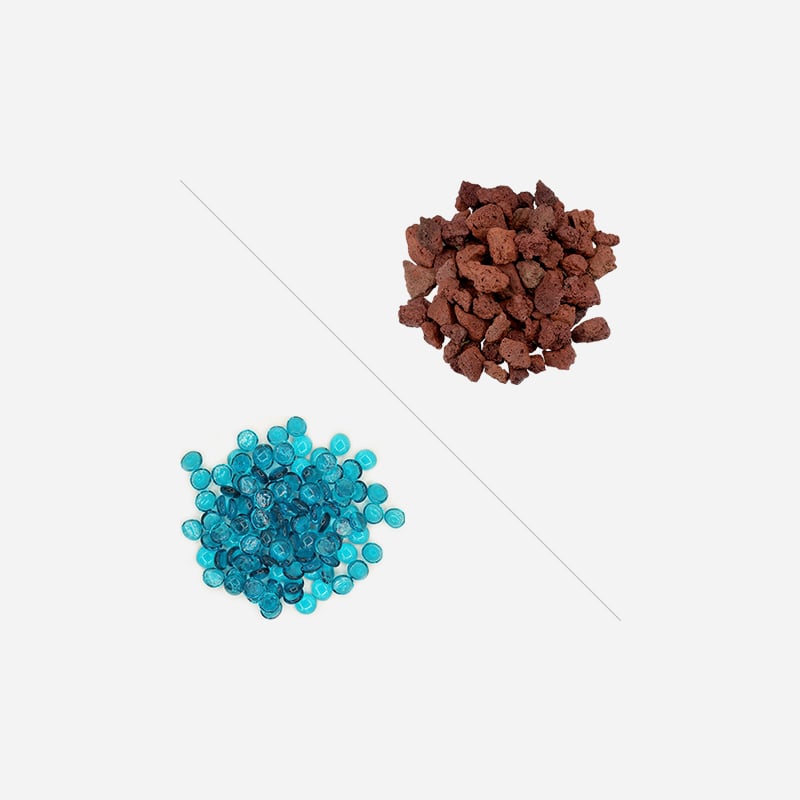

Volcanic Stone/Crystal Stone
Decorative media options including volcanic stones and fire glass crystals optimize combustion airflow and enhance flame aesthetics.
-

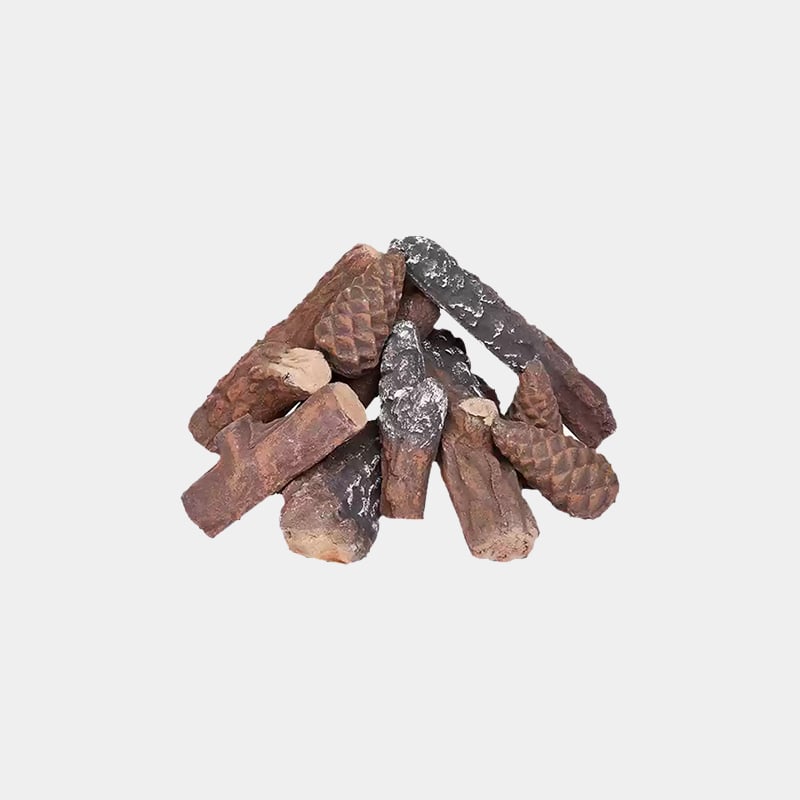

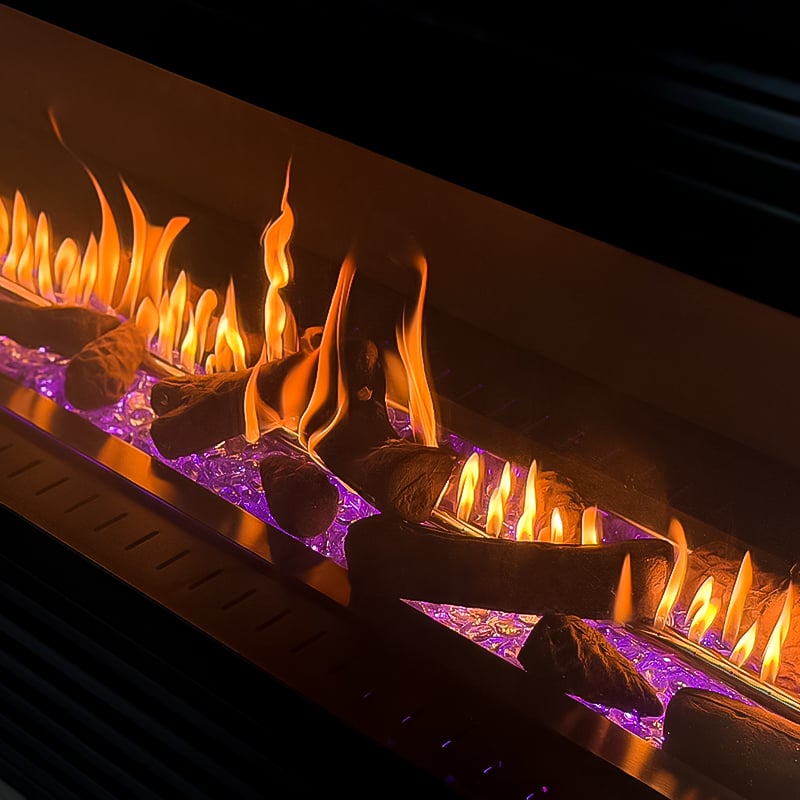

Logs
Ceramic log set enhances flame realism with natural wood-like texture and high-temperature durability.
-

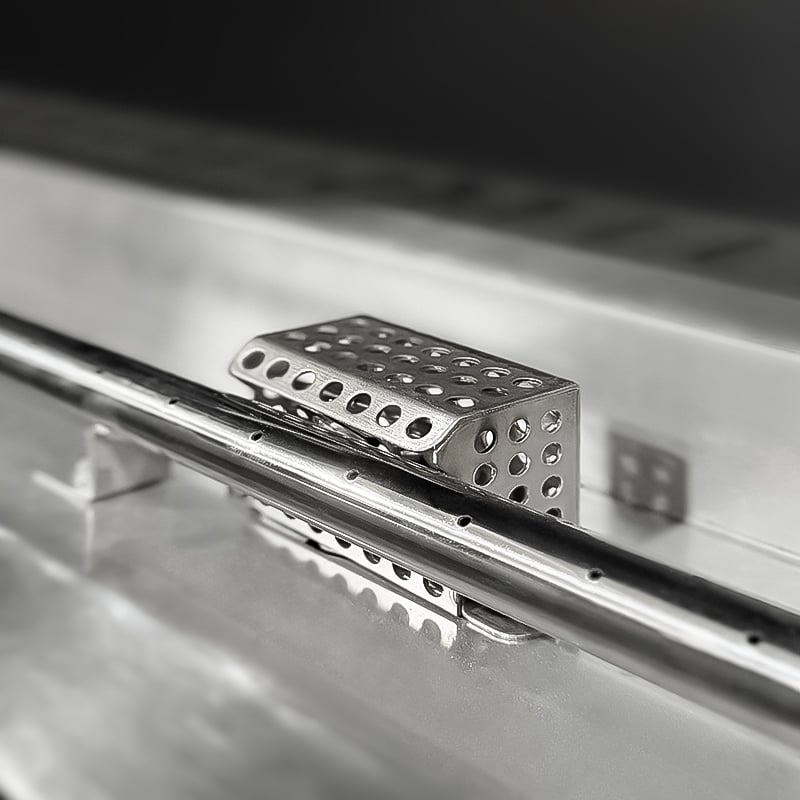

Core Combustion System Kit
The core combustion system includes a precision burner, calibrated injectors, thermocouple safety monitoring, automatic gas shut-off valve, and Venturi mixing tube, ensuring stable ignition, efficient combustion, and enhanced operational safety.
-
Combustion Safety System
The combustion safety system integrates ODS oxygen monitoring, flame failure detection (FDD), carbon monoxide monitoring, overheat protection, and gas leak detection, providing multi-layer safety control for stable and secure operation.
-
High-Temperature Ceramic Glass
SCHOTT® ceramic glass (Germany) provides high heat resistance and clear flame visibility for safe combustion operation.
-

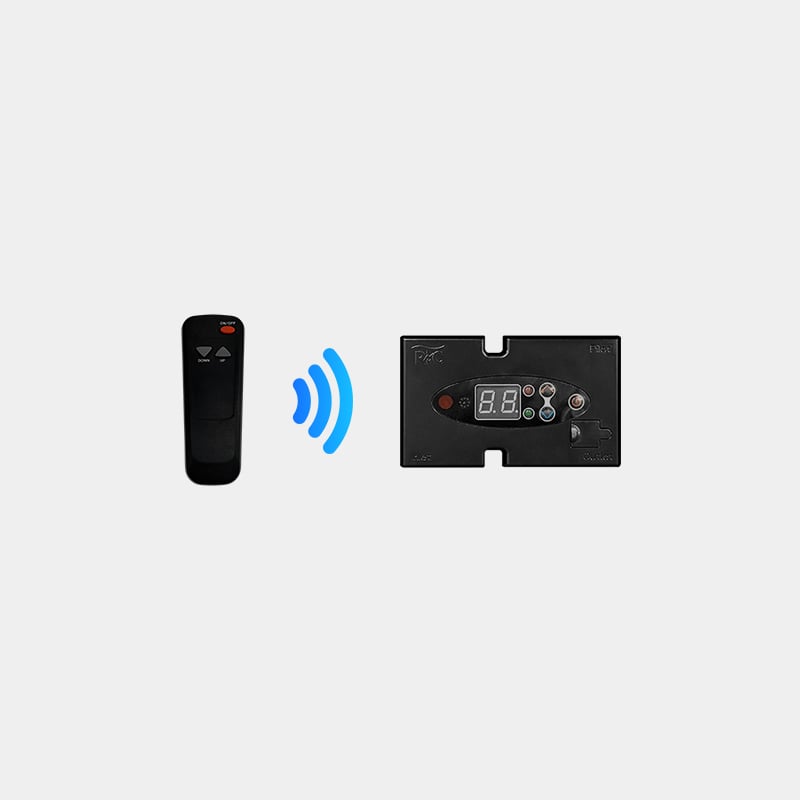

Control System
Touch control panel and remote control system enable intuitive ignition, flame adjustment, and power management.
Optional Accessory
-

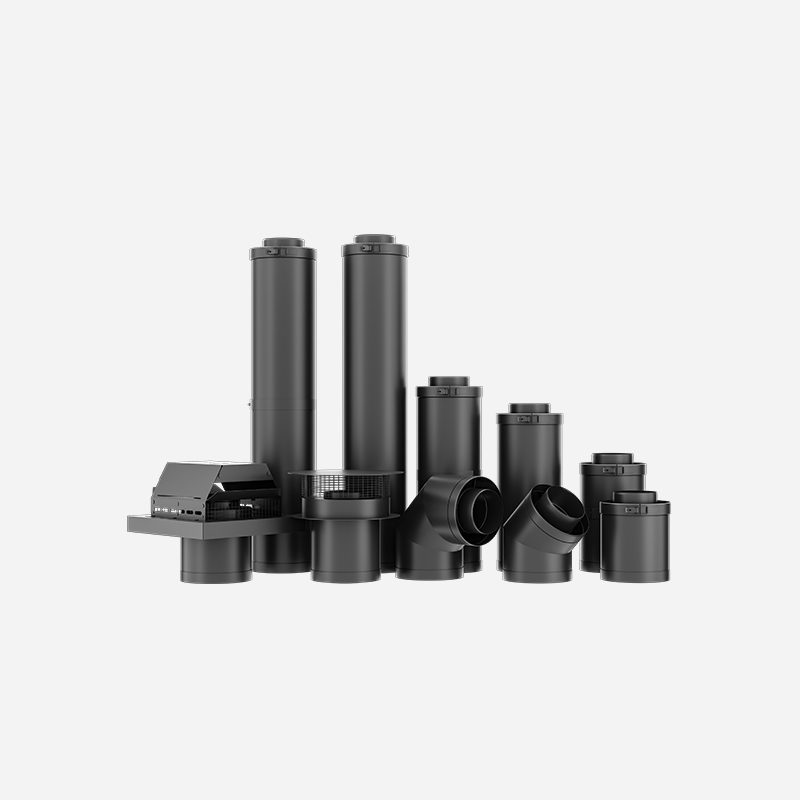

Co-axial double-wall flue kit
The co-axial double-wall flue kit is engineered for balanced combustion airflow, integrating fresh air intake and flue gas exhaust within a sealed system to ensure high safety and thermal efficiency.
-
LED Ambient Lighting System
The LED ambient lighting system is seamlessly integrated into the burner bed, enhancing flame perception through subtle illumination and creating a deeper, more immersive fire experience.
-

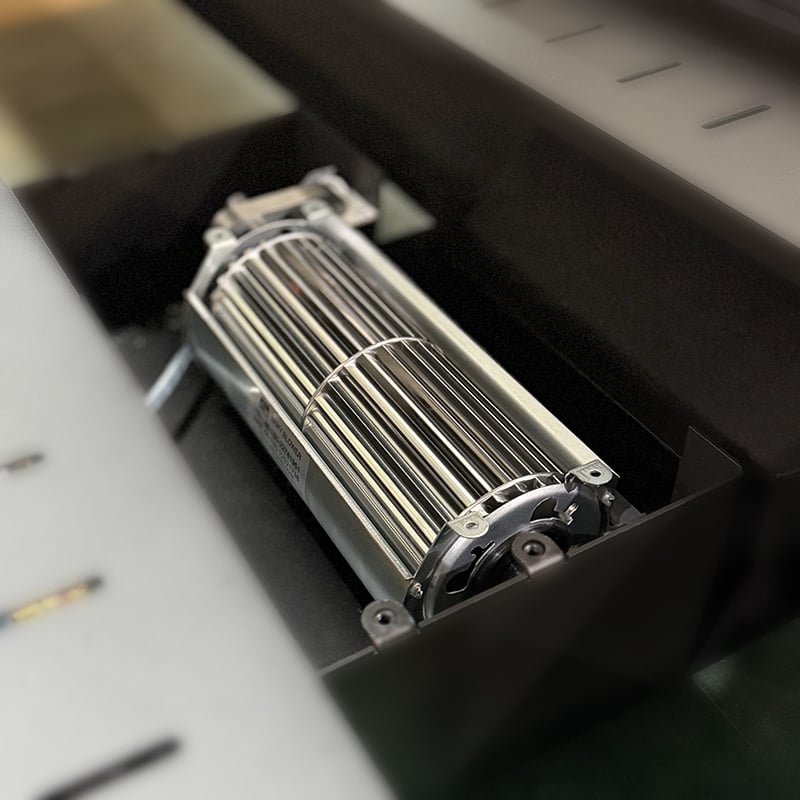

Blower Unit
The integrated blower system enhances convection performance by actively circulating heated air, ensuring uniform heat distribution and improved thermal comfort across the room.
-

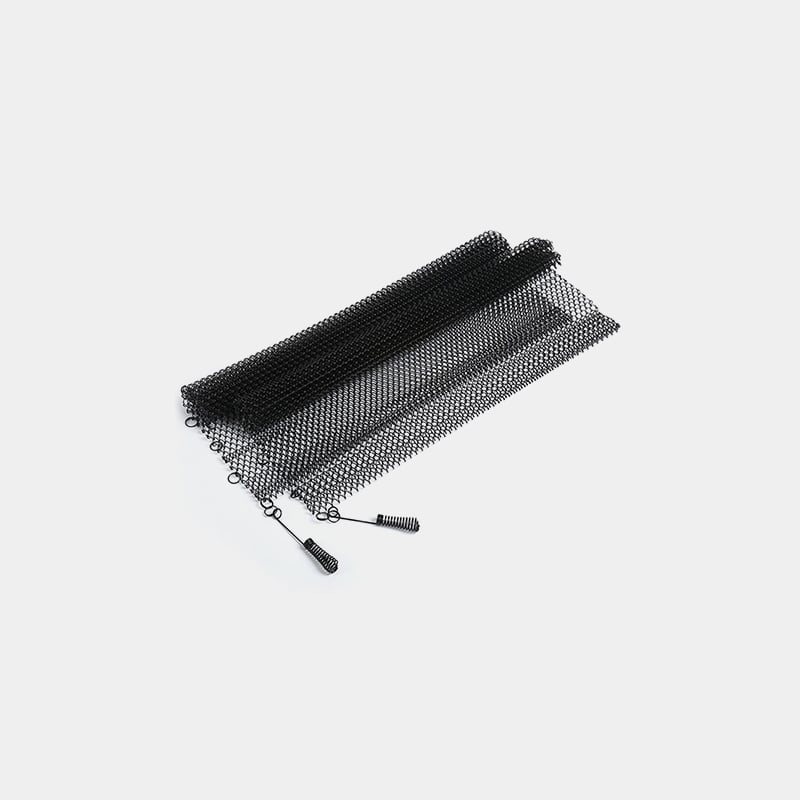

Heat-Insulating Metal Mesh
The heat-resistant metal mesh acts as a protective thermal barrier, reducing direct exposure to high temperatures while preserving airflow balance and maintaining clear flame visibility.
-

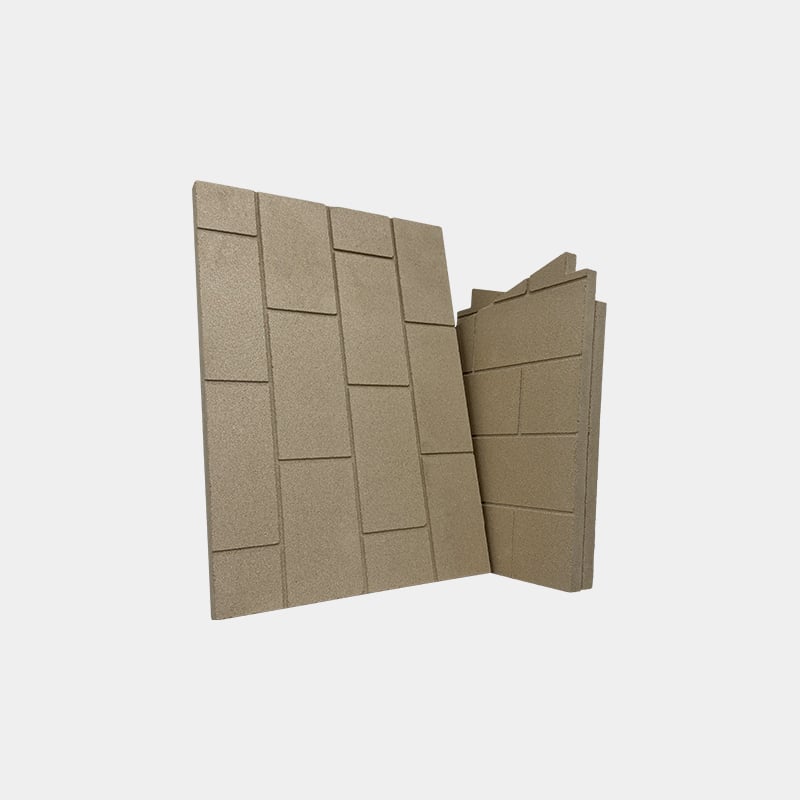

Vermiculite Board Structure
Vermiculite board structure provides high-efficiency thermal insulation, protecting surrounding components from extreme combustion heat while improving heat retention stability.
-

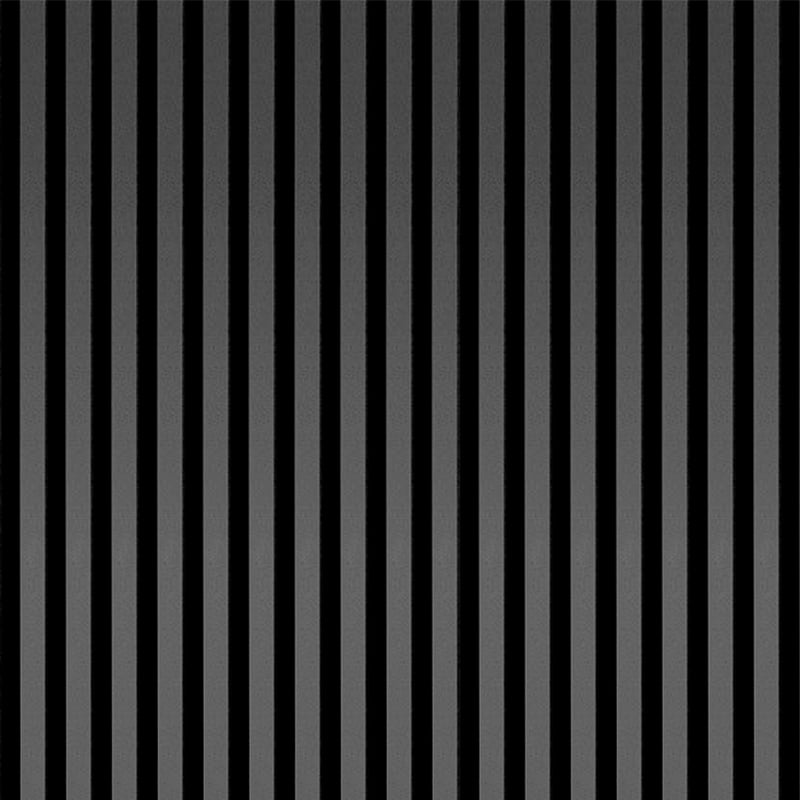

Metal Grating Structure
Metal grille structure provides structural ventilation and heat dissipation while acting as a protective barrier for the combustion system.
-

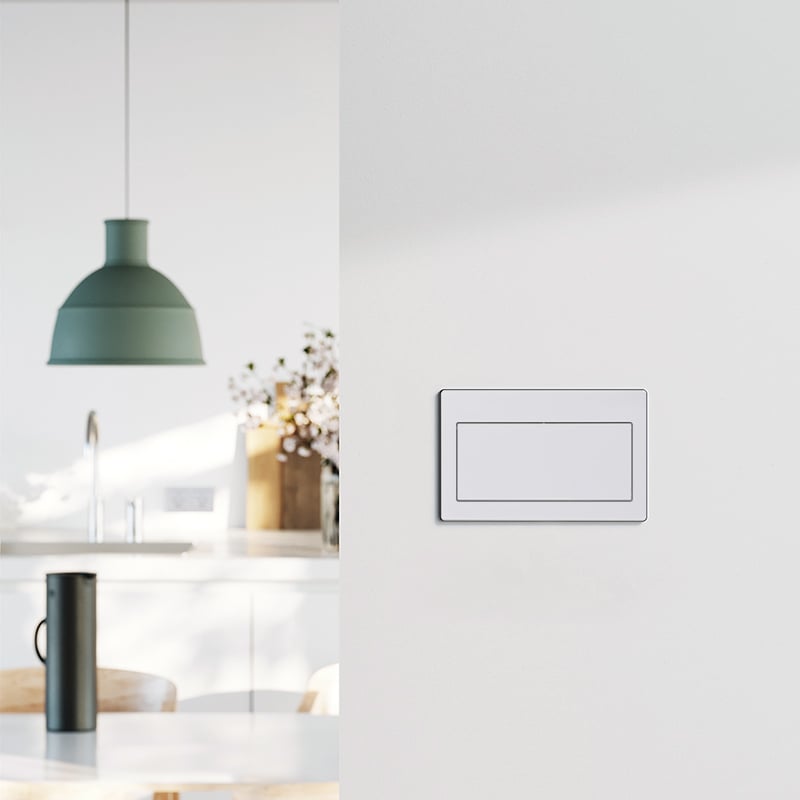

Wall-Mounted Remote Control
Wall-mounted control panel enables convenient ignition, flame adjustment, and system operation with intuitive user interface design.

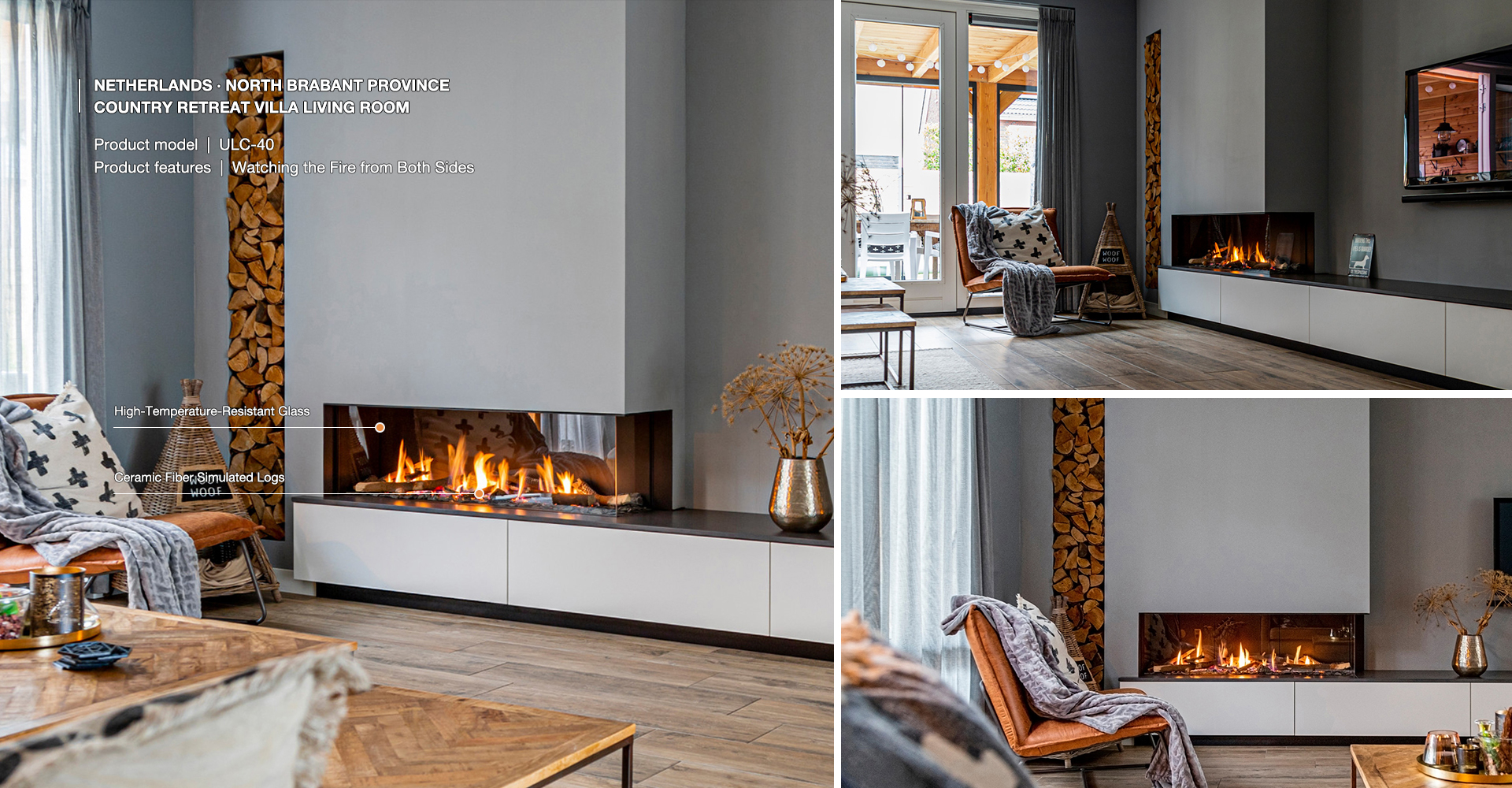

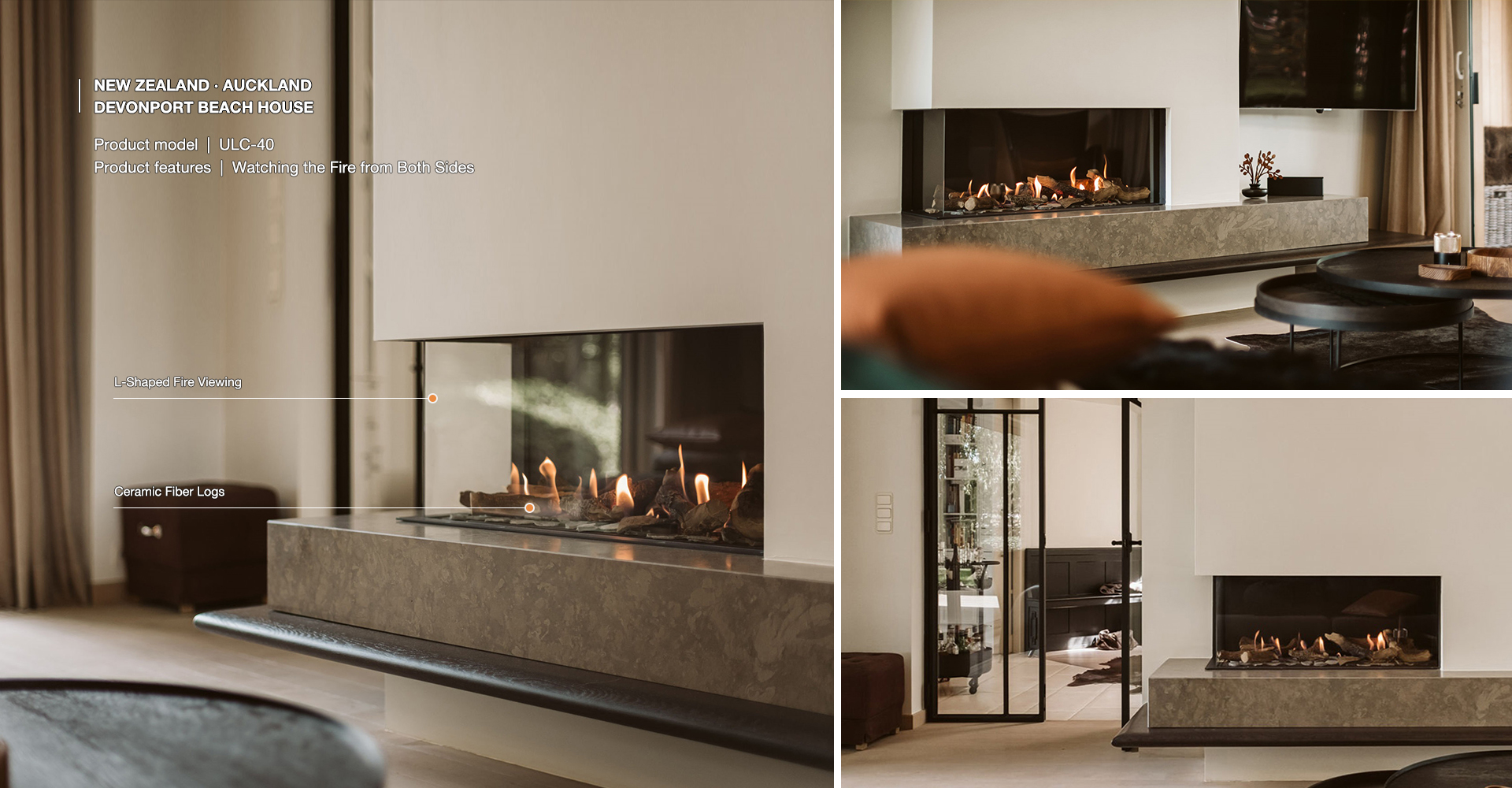

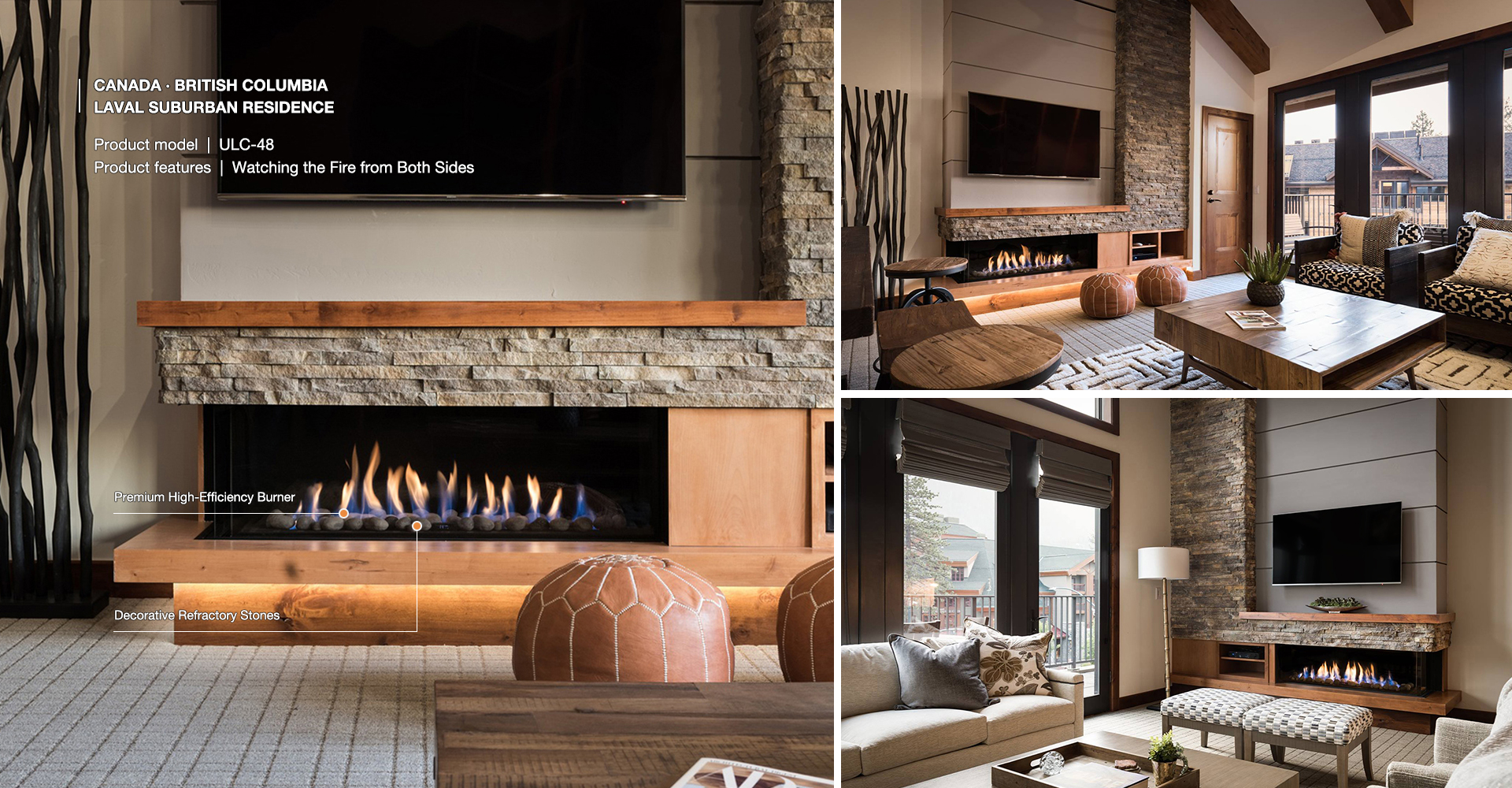

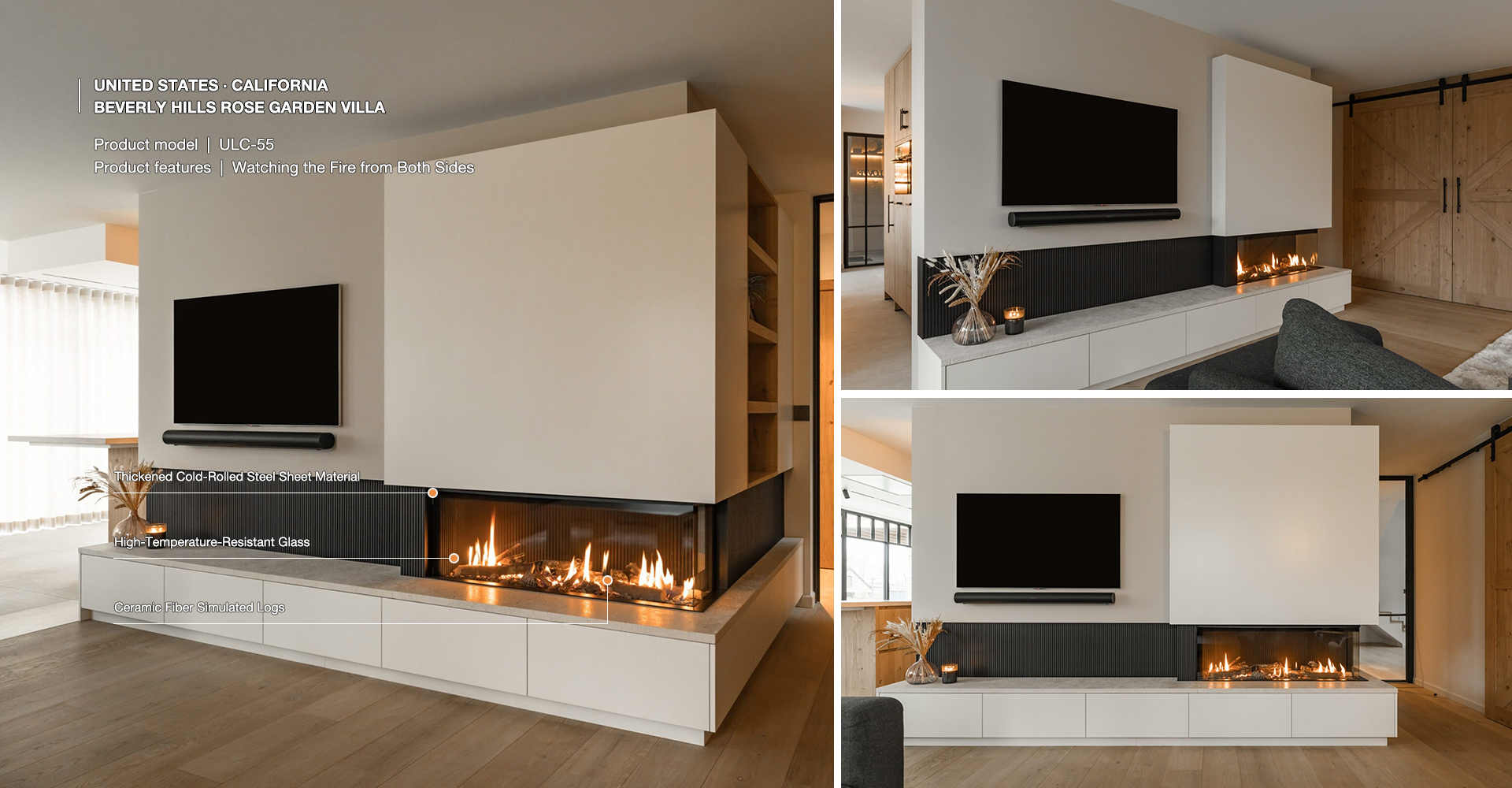

Product Application
