ULC 1219mm Extra-Tall Gas Fireplace

This vertical extra-tall gas fireplace adopts a tall vertical single-panel design with a full-height transparent glass window. Real clean-burning gas flames are located at the bottom, forming a striking vertical visual contrast. Adjustable flame size and heating power fit partition walls, entryways and minimalist high-ceiling interior designs.

More styling options
Specifications & Drawings
Efficiency
Accessories
Optional Accessory

More styling options

Flexible fireplace installation solutions fit any interior design style.

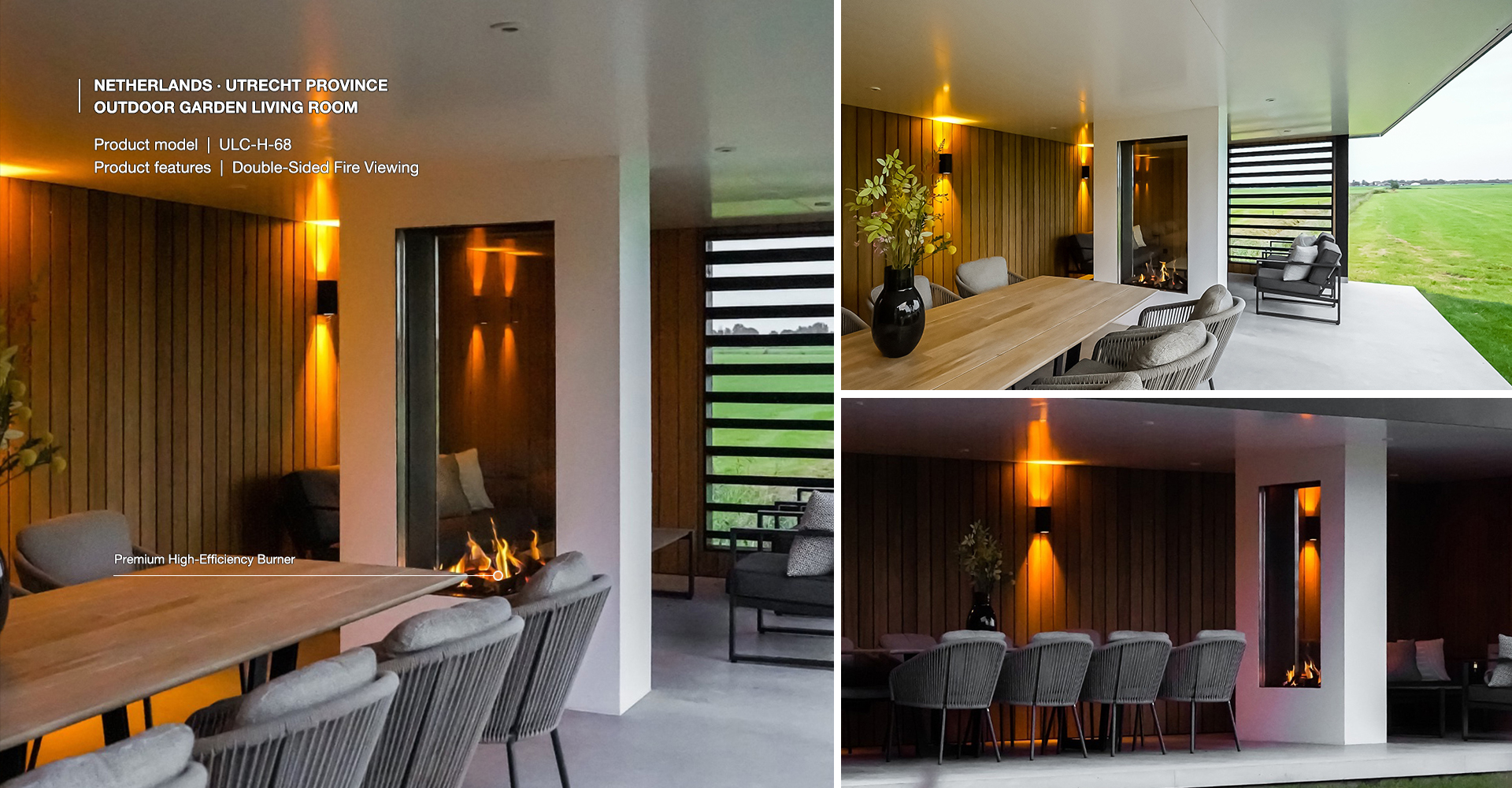

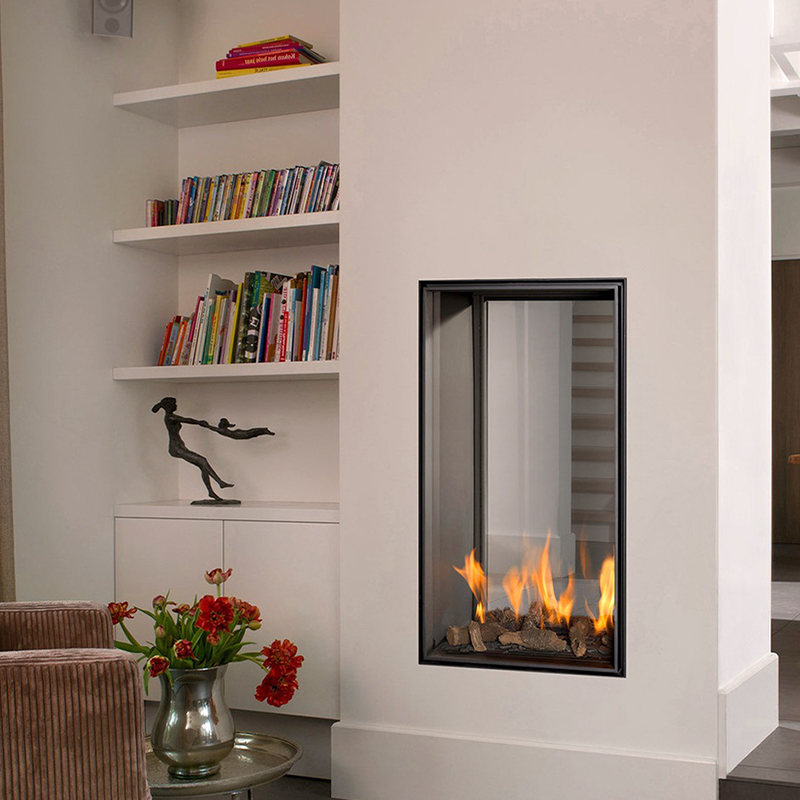

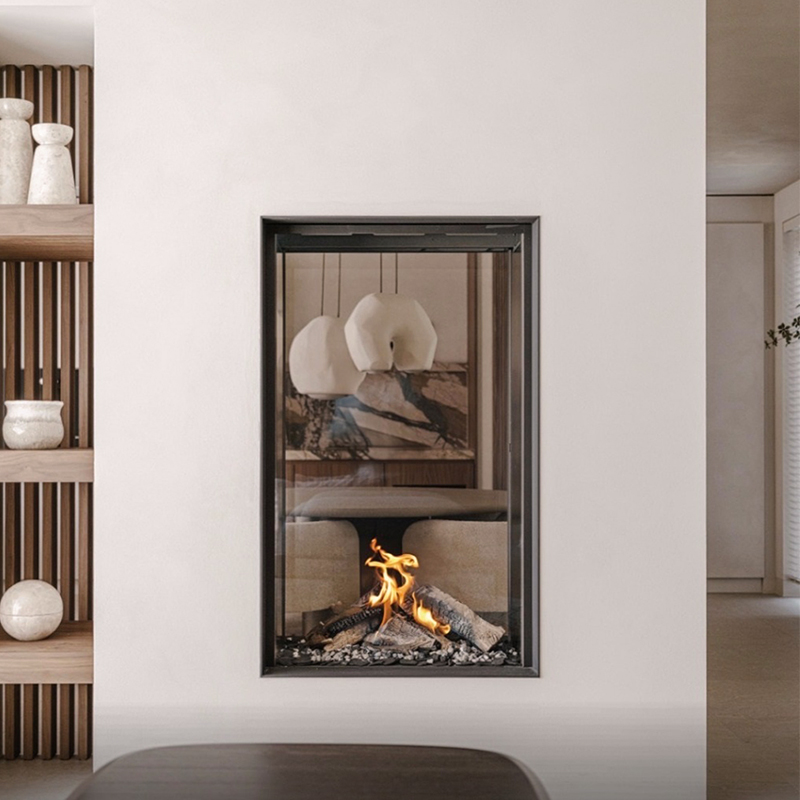

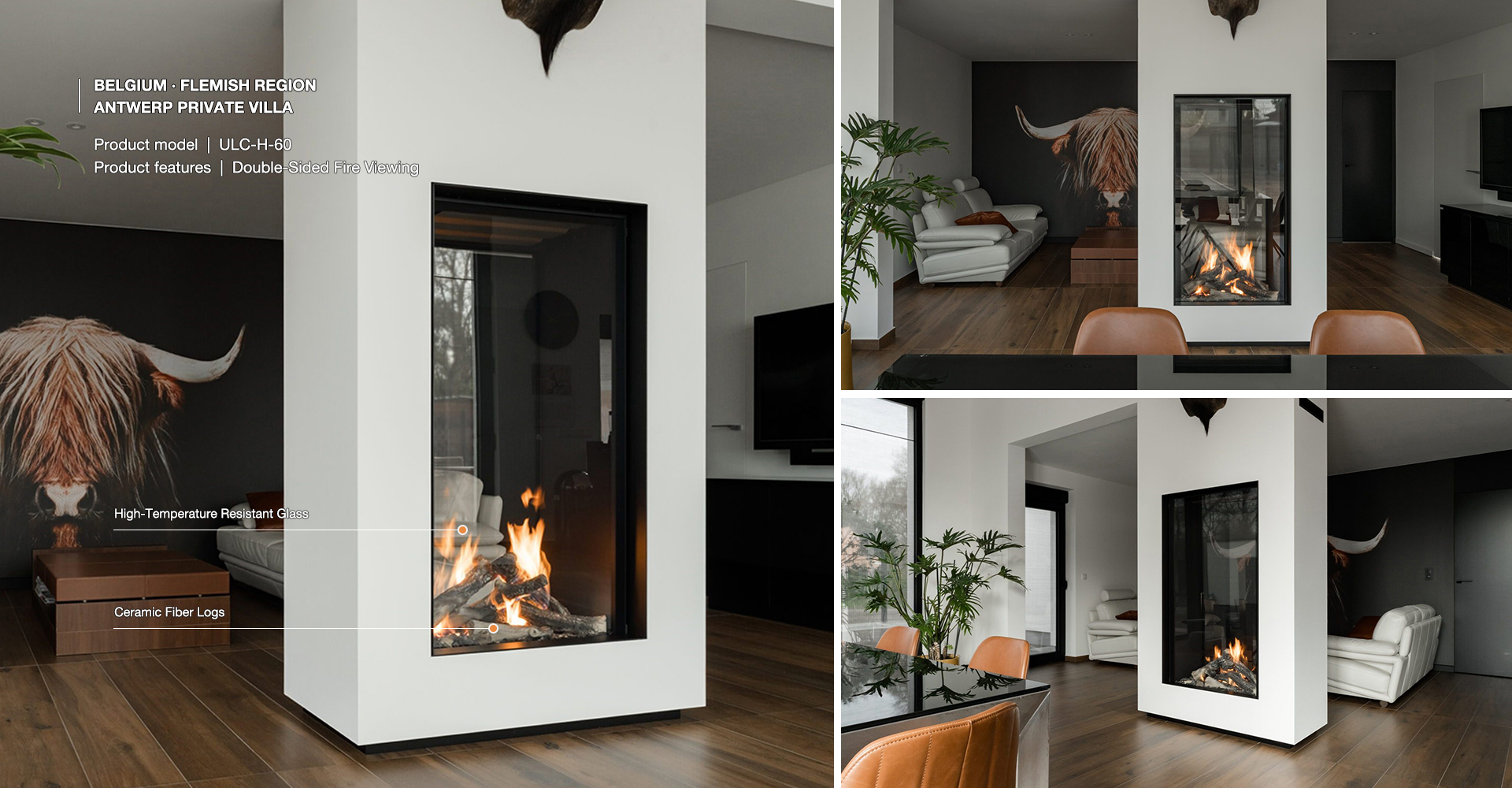

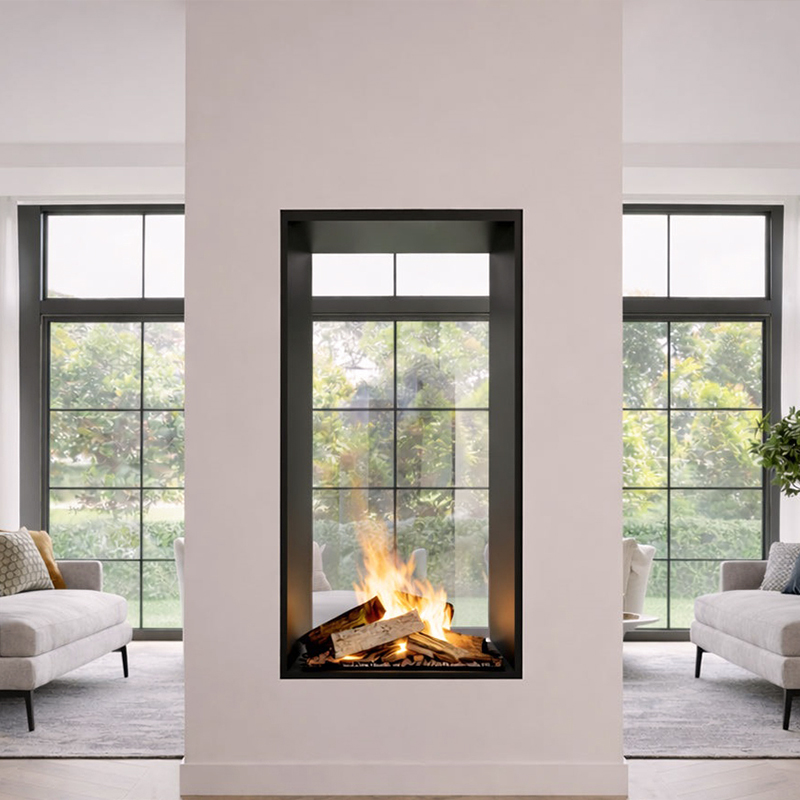

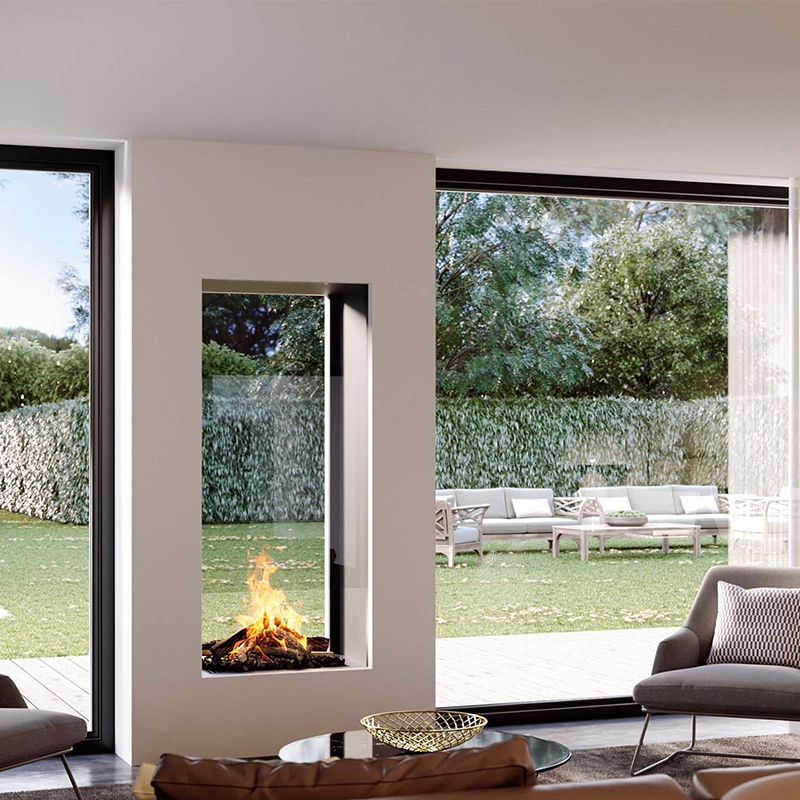

The ULC Gas Fireplace series delivers flexible installation options for all interior designs. Available as room divider, panoramic three-sided, see-through double-sided, minimalist single-sided wall-mounted and L-shaped corner units, it maintains unobstructed sightlines, broadens flame visibility, integrates smoothly into any space and harmonizes functionality with aesthetics.

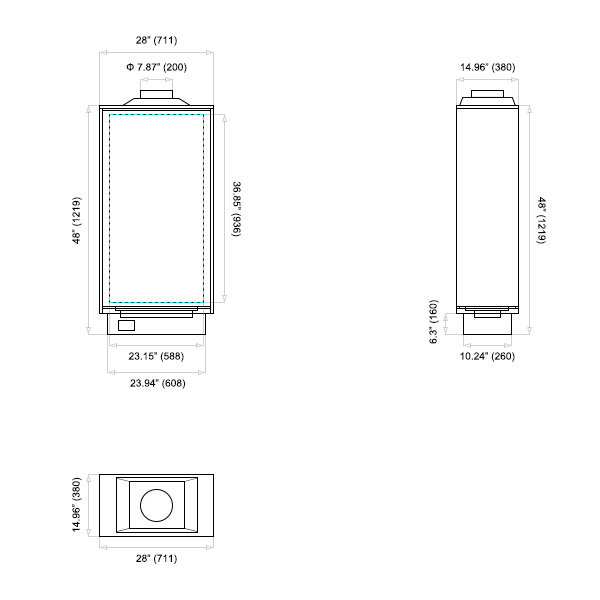

Specifications & Drawings

Gas TypeCompatible Fuel Types	NG / LPG
Fireplace TypesIts product types	Direct Vent / B-Vent / Vent-Free
Control SystemIntelligent Operation	Remote Control / Touch Buttons
Flame Height Adjustment RangeThe maximum height the flame can reach	1-5-step adjustment
Glass TypeSchott glass imported from Germany	Ceramic Glass
Power StandardsCompatible Plug Types	110–120V / 220–240V
Additional Features	LED Ambient Lighting System

Efficiency


Gas Type Compatible Fuel Types	NG	LPG
Thermal Efficiency Its combustion efficiency	85%-95%	85%-98%
Gas Inlet Pressure Range Pipe Connection Standards	17–25 mbar (EU) 5–10 in.w.c (US)	25–37 mbar (EU) 10–14 in.w.c (US)
Heat Output Range (BTU / kW) The amount of heat it can release	50,000 – 80,000 BTU 15 – 23 kW	50,000 – 80,000 BTU 15 – 23 kW
Suitable Room Size Heating Area It Can Cover	80 – 180 m²	80 – 180 m²
Hourly gas consumption Amount of fuel required	1.4 – 2.3 m³/h	1.0 – 1.6 kg/h
Burn Time Continuous Burn Time	Unlimited	10 kg of LPG ≈ 6–12 h

Accessories

Volcanic Stone/Crystal Stone

Decorative media options including volcanic stones and fire glass crystals optimize combustion airflow and enhance flame aesthetics.
Logs

Ceramic log set enhances flame realism with natural wood-like texture and high-temperature durability.
Core Combustion System Kit

The core combustion system includes a precision burner, calibrated injectors, thermocouple safety monitoring, automatic gas shut-off valve, and Venturi mixing tube, ensuring stable ignition, efficient combustion, and enhanced operational safety.
Combustion Safety System

The combustion safety system integrates ODS oxygen monitoring, flame failure detection (FDD), carbon monoxide monitoring, overheat protection, and gas leak detection, providing multi-layer safety control for stable and secure operation.
High-Temperature Ceramic Glass

SCHOTT® ceramic glass (Germany) provides high heat resistance and clear flame visibility for safe combustion operation.
Control System

Touch control panel and remote control system enable intuitive ignition, flame adjustment, and power management.

Optional Accessory

Co-axial double-wall flue kit

The co-axial double-wall flue kit is engineered for balanced combustion airflow, integrating fresh air intake and flue gas exhaust within a sealed system to ensure high safety and thermal efficiency.
LED Ambient Lighting System

The LED ambient lighting system is seamlessly integrated into the burner bed, enhancing flame perception through subtle illumination and creating a deeper, more immersive fire experience.
Blower Unit

The integrated blower system enhances convection performance by actively circulating heated air, ensuring uniform heat distribution and improved thermal comfort across the room.
Heat-Insulating Metal Mesh

The heat-resistant metal mesh acts as a protective thermal barrier, reducing direct exposure to high temperatures while preserving airflow balance and maintaining clear flame visibility.
Vermiculite Board Structure

Vermiculite board structure provides high-efficiency thermal insulation, protecting surrounding components from extreme combustion heat while improving heat retention stability.
Metal Grating Structure

Metal grille structure provides structural ventilation and heat dissipation while acting as a protective barrier for the combustion system.
Wall-Mounted Remote Control

Wall-mounted control panel enables convenient ignition, flame adjustment, and system operation with intuitive user interface design.
